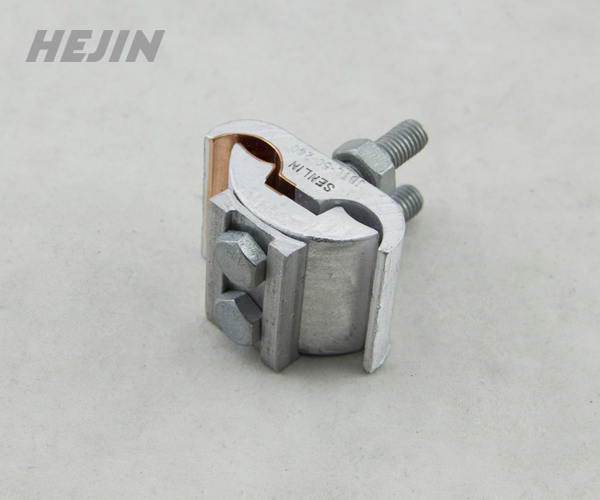

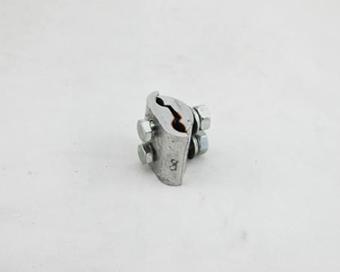

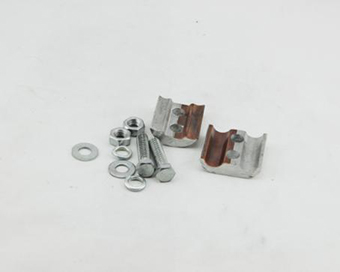

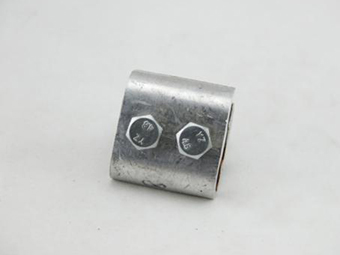

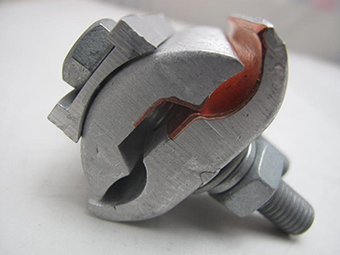

Bi-metal Parallel Groove clamps
Quick Details
|
Place of Origin:
|
Zhengzhou, China (Mainland)
|
Brand Name:
|
Hejin
|
Model Number:
|
CAPG series
|
|
Application:
|
Power
|
Bolt Qty.:
|
1/2/3
|
Material:
|
CU-AL
|
|
Bolt diameter:
|
8MM
|
Nuts' shape:
|
Hexagon
|
|
|
Specification
|
Modle
|
Conductor Cross-section(mm2)
|
Bolts
|
|
CAPG-A1
|
Cu 6-50 Al 16-70
|
1×M8×40
|
|
CAPG-A2
|
Cu 10-95 Al 25-150
|
1×M8×45
|
|
CAPG-B1
|
Cu 6-50 Al 16-70
|
2×M8×45
|
|
CAPG-B2
|
Cu 10-95 Al 25-150
|
2×M8×50
|
|
CAPG-B3
|
Cu 25-185 Al 35-200
|
2×M10×60
|
|
CAPG-C1
|
Cu 6-50 Al 16-70
|
3×M8×45
|
|
CAPG-C2
|
Cu 10-95 Al 25-150
|
3×M8×50
|
|
CAPG-C3
|
Cu 25-185 Al 35-240
|
3×M10×60
|
|
CAPG-C4
|
Cu 35-240 Al 35-300
|
3×M10×70
|
