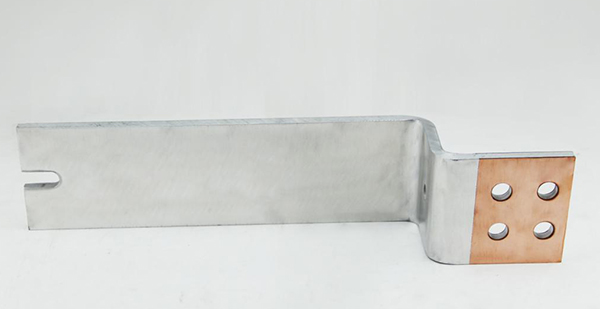

CCA transition plate
Quick Details
Place of Origin:
|
Fujian, China (Mainland)
|
Brand Name:
|
China- grid
|
Model Number:
|
HJ
|
Application:
|
transition connector
|
Material:
|
Copper
|
Dimensions:
|
N
|
Type:
|
transition plate
|
Material for body:
|
Aluminum and copper
|
Suitable conductors:
|
aluminum bus bar
|
Installation:
|
Easy to operate
|
Durability:
|
Long
|
Stability:
|
High
|
Mechanical Strength:
|
High
|
|
|
|
|
Packaging & Delivery
Packaging Details:
|
Wooden pallet
|
Delivery Detail:
|
7-21 days
|
Product Description
Usage: Mainly used in power plants, generations lead copper conductor and aluminum bus-bar connecting the transition, can also be used for the connection between copper terminal and aluminum terminal clamp, products are made of flash welding friction welding or Qian welding proof.
![CCA transition plate](/uploadfile/201606/22/163277001.jpg)

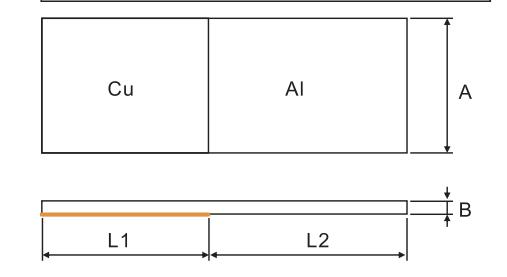

Technical Parameters
Type no
|
Bus-bar
specification
|
Dimension(mm)
|
|||
a
|
b
|
L1
|
L2
|
||
HJ-50*5
|
50*5
|
50
|
5.0
|
50
|
60
|
HJ-60*6
|
60*6
|
60
|
6.0
|
60
|
80
|
HJ-63*6.3
|
63*6.3
|
63
|
6.3
|
65
|
88
|
HJ-63*8
|
63*8
|
63
|
8.0
|
65
|
88
|
HJ-63*10
|
63*10
|
63
|
10.0
|
65
|
88
|
HJ-80*8
|
80*8
|
80
|
6.3
|
82
|
103
|
HJ-80*6.3
|
80*6.3
|
80
|
8.0
|
82
|
103
|
HJ-80*10
|
80*10
|
80
|
10.0
|
82
|
103
|
HJ-100*8
|
100*8
|
100
|
8.0
|
102
|
123
|
HJ-100*10
|
100*10
|
100
|
10.0
|
102
|
123
|
HJ-120*10
|
120*10
|
120
|
10.0
|
122
|
148
|
HJ-125*8
|
125*8
|
125
|
8.0
|
127
|
148
|
HJ-125*10
|
125*10
|
125
|
10.0
|
127
|
148
|
HJ-125*12.5
|
125*12.5
|
125
|
12.5
|
127
|
148
|
