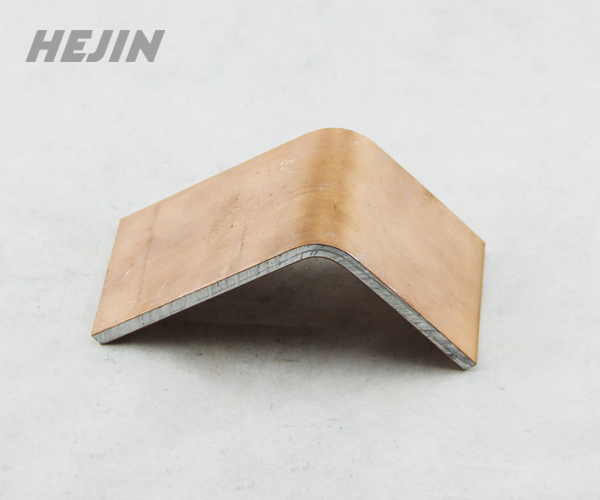

CCA busbar
Specification:
Weight Display in Common Specification
|
|
|
|
|
|
|
||
Specification a*b(mm)
|
3*30
|
3*40
|
3*50
|
|
|
|
|
|
Weight/meter(kg)
|
0.31
|
0.42
|
0.53
|
|
|
|
|
|
Specification a*b(mm)
|
4*40
|
4*50
|
4*60
|
4*80
|
|
|
|
|
Weight/meter(kg)
|
0.56
|
0.7
|
0.84
|
1.12
|
|
|
|
|
Specification a*b(mm)
|
5*40
|
5*50
|
5*60
|
5*80
|
|
|
|
|
Weight/meter(kg)
|
0.7
|
0.875
|
1.05
|
1.4
|
|
|
|
|
Specification a*b(mm)
|
6.4
|
6*50
|
6*60
|
6*80
|
6*100
|
|
|
|
Weight/meter(kg)
|
0.84
|
1.05
|
1.26
|
1.68
|
2.1
|
|
|
|
Specification a*b(mm)
|
8*50
|
8*60
|
8*80
|
8*100
|
8*120
|
8*200
|
|
|
Weight/meter(kg)
|
1.4
|
1.68
|
2.24
|
2.8
|
3.36
|
5.6
|
|
|
Specification a*b(mm)
|
10*60
|
10*80
|
10*100
|
10*120
|
10*150
|
10*200
|
10*250
|
10*300
|
Weight/meter(kg)
|
2.1
|
2.8
|
3.5
|
4.2
|
5.25
|
7
|
8.75
|
10.5
|
Characteristics
1) Proportion of Copper/Aluminum is 2:8 and the proportion could be adjusted by customer's demand.
2) Single and double side copper clading are available.
3) Consistency of thickness is stable and very suitable for mass stampling production.
4) Resistance to corrosion and high temperature (500degree c without separation).
5) With good stability, excellent deep drawability and tensile properties, it can even bear 90°bend without separation.
6) With an electrical conductivity of 98% or more, it can completely replace pure copper by saving cost64% under same volume.
7) The dimension can be produce as requested.
